جزئیات محصول:
پرداخت:
|
| Type: | Fixed | Apply port: | SC/FC/LC/ST |
|---|---|---|---|
| Capacity: | 12~144core | Size: | 430*250*1U/2U/3U/4U |
| Material: | Metal | Outer carto weight: | 14.2/5pcs (1U) |
| برجسته کردن: | FC SC rack mount fiber patch panel,1U FC SC fiber patch panel,1U LC ST fiber patch panel,1U FC SC fiber patch panel,1U LC ST fiber patch panel |
||

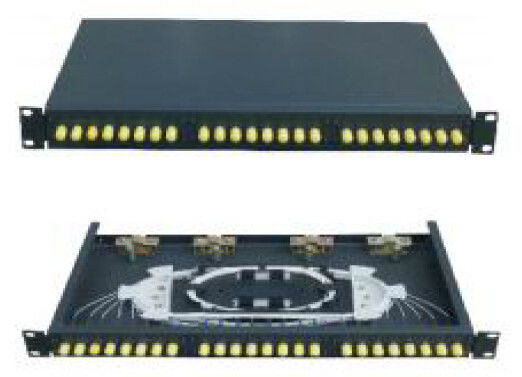

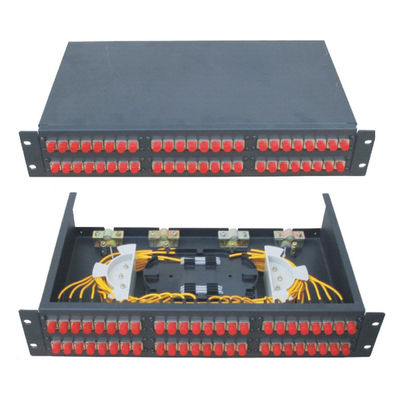

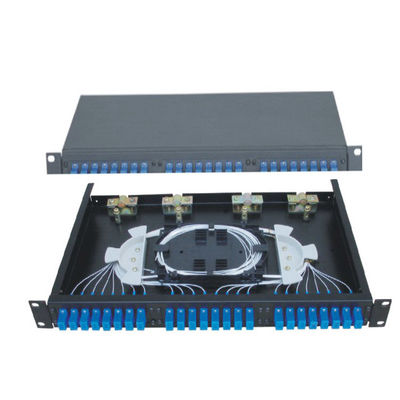

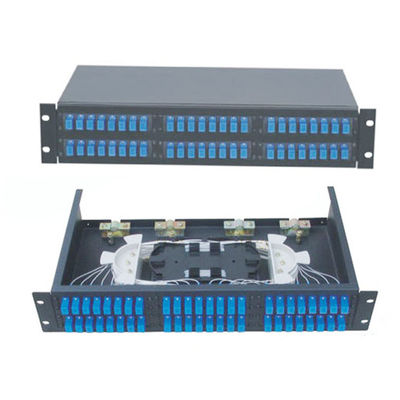

FC SC LC ST 24 Port Rack Mount Fiber Patch Panel
Fixed type 19'' standard structure Rack-mount Fiber Optic Patch Panel With FC SC LC ST adaptor
Introduction:
Fixed Rack-mount Fiber Optic Distribution Frame with 1U height distribution center holds up to 2 fusion splice trays and provides an economical way of splicing a small number of fiber cables in communication room or existing equipment racks where space is constrained.
Features:
Standard size, light weight and reasonable structure
Compact design for space saving
Suitable for ribbon and single fiber
Various panel plate to fit different adapter interface(FC,SC,ST Adapter)
Front access panel design for easy operation
Suitable for 19’’ standard optic distribution Cabinets
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Specification:
| Type | GPZ/JJ |
| Dimension(mm) | 430*250*1U/2U/3U/4U |
| Suitable adapter | FC/LC/SC/ST,APC/UPC/PC |
| Fiber Capacity(cores) | 12,24,48,,96(panel plate can be changed) |
| Material | Cold-roll steel sheet |
Order information:
| Type | Dimension(mm) | Max capacity(cores) | Remark |
| GPZ/JJ-SC12 | 430*250*1U | 12 | Cold rolled steel sheet,with electrostatic spraying,suitable for FC,SC,ST,LC adapters. |
| GPZ/JJ-FC24 | 24 | ||
| GPZ/JJ-2SC24 | 48 | ||
| GPZ/JJ-FC48 | 430*250*2U | 48 |
Packing information:
| Type |
Inner carton size (mm) |
Weight (kg) |
Packing size (mm) |
Weight (kg) |
No./ carton |
| GPZ/JJ-SC12 | 465*330*75 | 5.5 kg | 485*420*350 | 29.0 kg | 5 |
| GPZ/JJ-FC24 | |||||
| GPZ/JJ-2SC24 | |||||
| GPZ/JJ-FC24 | 475*335*130 | 6.2kg | 500*355*550 | 26.3kg | 4 |
