جزئیات محصول:
پرداخت:
|
| Model No.: | CWDM DWDM | Product Name: | Optical CWDM Mux/Demux Module |
|---|---|---|---|
| Wavelength: | 1270~1610nm | Connector: | FC SC LC ST |
| Packing: | 19' 1U rack mount,ABS box | Application: | FTTx Solutions |
| Channel Number: | (2~18channel optional) | Logo: | Can be customized |
| برجسته کردن: | WDM CWDM DWDM Module,18 Channel CWDM,1U Rack Mount CWDM,18 Channel CWDM,1U Rack Mount CWDM |
||

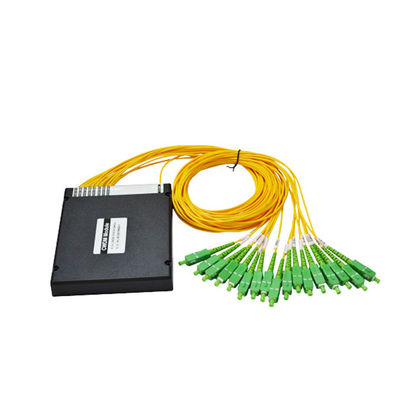

1U Rack Mount 18 Channel WDM CWDM DWDM Module
4 8 16 18 channel WDM CWDM DWDM Mux Demux Module, 1U Rack Mount CWDM Multiplexer FWDM Splitter Device
Description
Coarse Wavelength Division Multiplexer (CWDM) Utilizes Thin Coating Technology and Proprietary Design of Non-flux Metal Bonding Micro Optics Packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.Our CWDM Mux Demux products provide up to 18-channel Multiplexing on a single fiber.
Due the the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: ABS box package, LGX pakcage and 19” 1U rackmount.
Applications
CWDM System
PON Networks
CATV Links
Features&Advantage:
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1620nm
Wide Operating Temperature:
From -40°C to 85°C
High Reliability and Stability
Specification:
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
