جزئیات محصول:
|
| Product name: | Attenuator | Fiber Mode: | Single mode, Multimode |
|---|---|---|---|
| Attenuation Accurancy: | 1-9dB ±0.5dB, 10-30dB ±10% | Attenuation range: | 0-30dB |
| Return loss: | PC≥45 dB; UPC≥50 dB ;APC ≥60 dB | Repeatability: | 1000 times |
| Operating Wavelength (nm): | 1260~1620(SM) | Operating temperature: | -40-80°C |
| Connector: | FC APC | ||
| برجسته کردن: | 1000mW Fiber Optic Attenuator,FC APC Attenuator,Multimode Attenuator,FC APC Attenuator,Multimode Attenuator |
||
Commonly used fiber optic attenuators are the female to male type, which is also called a plug fiber attenuator. They are with ceramic ferrules and there are various types to fit different kinds of fiber optic connectors. Fixed value fiber optic attenuators can reduce the optical light power at a fixed level, for example, a 10dB SC fiber optic attenuator will reduce the optical power 10dB and utilize a SC male to female attenuator. Variable fiber optic attenuators are with adjustable attenuation range. There are also attenuation fiber optic patch cables available, their function is same as attenuators and are used inline.
Features:
Specification:
| Item | Parameter |
| Model | Fixed, Female&Male, In-line, Variable |
| Operating Wavelength | SM:1310/1550nm MM: 850/1300nm |
| Attenuation Range | 1~30dB |
| Return Loss | PC:≥50dB UPC: ≥55dB APC: ≥60db |
| Attenuation Tolerance | ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
| Maximum Optical Input Power | 1000mW |
| Polarization Dependent Loss | ≤0.1dB |
| Working Temperature | -40°C~+75°C |
| Storage Temperature | -40°C~+ 85°C |
| Humidity | 95%RH |
Ordering Information:
Step 1: Connector type: FC, SC, LC, ST
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nmc

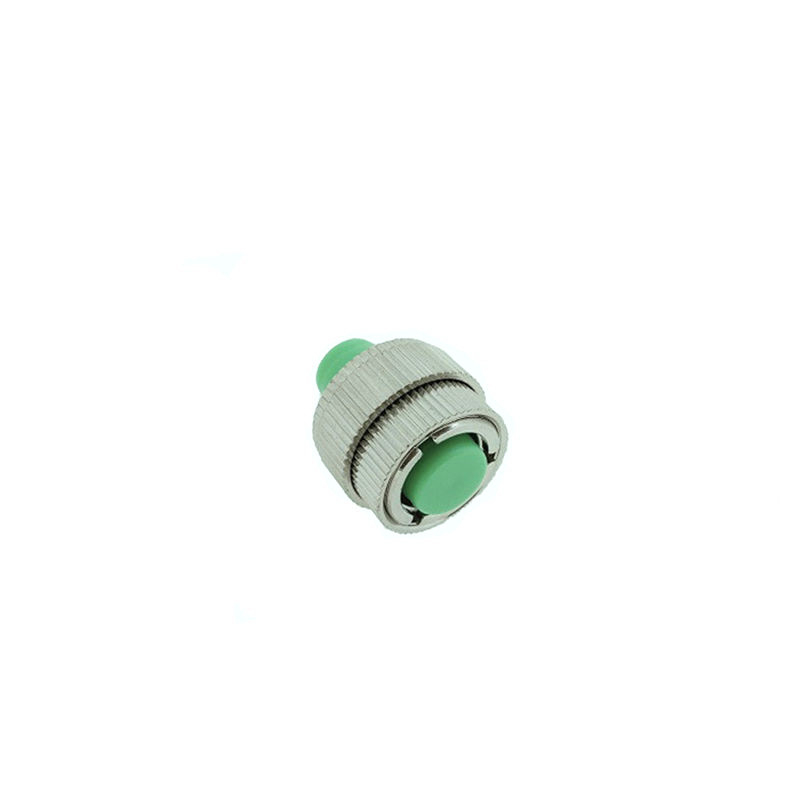

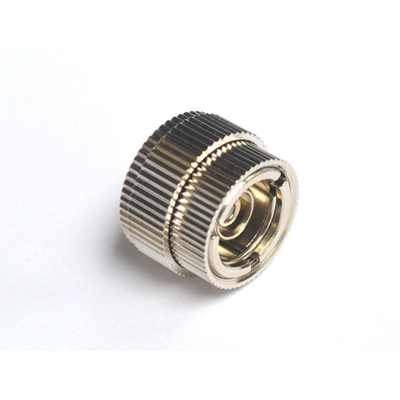

Product picture
Factory picture
