| Item: | LC / UPC Adapter | Color: | beige / Aqua / Purple /Violet |
|---|---|---|---|
| Structure: | Flangeless | Test: | 100% |
| Materials: | FBT+PC | Ferrule material: | Ceramic |
| Cap color: | White | Type: | Simplex |
| Fiber Type: | OM1/ OM2 / OM3 /OM4 | Application: | CATV,LAN,Telecommunication |
| برجسته کردن: | Simplex Fiber Optic Receptacle,OM1 Optic Receptacle,LC / UPC Receptacle,OM1 Optic Receptacle,LC / UPC Receptacle |
||

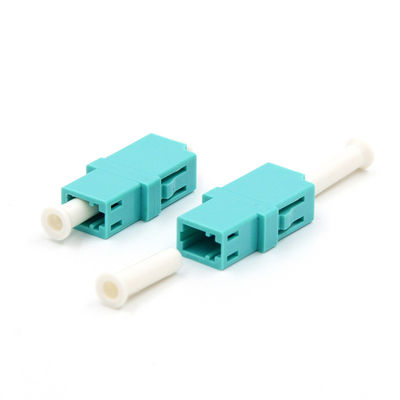

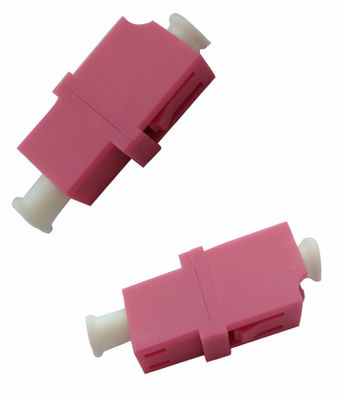

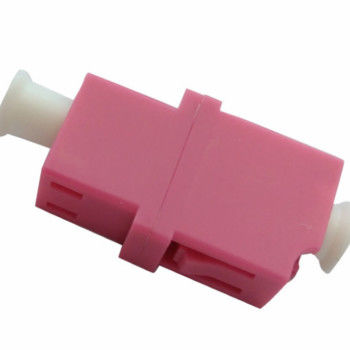

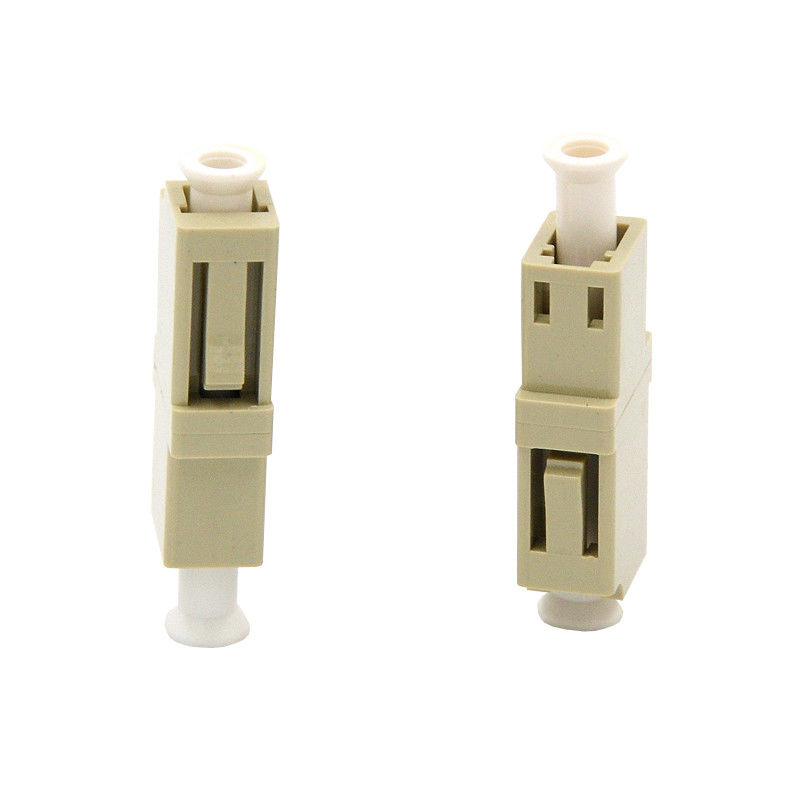

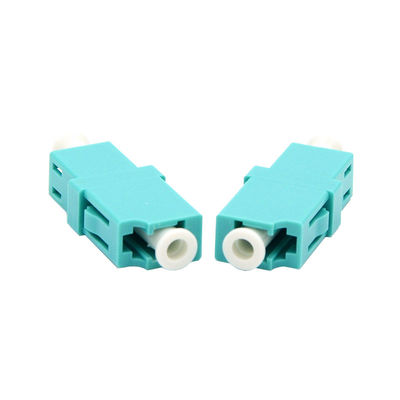

LC / UPC Multimode OM1 Simplex Fiber Optic Receptacle
LC / UPC Mutilmode OM1 OM2 OM3 OM4 Simplex coupler Plastic Fiber optical adapter Flangeless
Description:
LC Adapters were developed by Lucent Technologies. They are composed of a plastic housing with an RJ45 push-pull style clip.
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
Features:
Simplex / Duplex
High reliability & stability
Ceramic or Bronze Sleeve
Low insertion loss, high return loss
High precision of mechanical dimensions
Application:
Fiber Optic Telecommunications
LAN (Local Area Network)
FTTH (Fiber To The Home)
CATV&CCTV System
High speed transmission systems
Fiber optic sensing
Industtial, Mechanical and Military
Spare parts:
| No. | Item | Material | Whether or not RoHS | Flame retardant grade |
| 1 | Sleeve | ceramics | Y | Flame retardant |
| 2 | inner core | PC | Y | V-0 |
| 4 | shell | PC | Y | V-0 |
| 5 | Dust cap | PP | Y | Dissatisfaction |
| 6 | Metal bracket | SUS304 | Y | Flame retardant |
Specification:
Pictures and Drawing:
