10m 20m 30m SM Duplex SC FTTH Optical Fiber Patch Cord

تصویر بزرگ : 10m 20m 30m SM Duplex SC FTTH Optical Fiber Patch Cord

جزئیات محصول:

Place of Origin:	Shenzhen
نام تجاری:	CY COM
گواهی:	ISO ROHS

پرداخت:

Minimum Order Quantity:	10
Delivery Time:	5-10 work days
Payment Terms:	T/T, Western Union, MoneyGram, L/C

مخاطب

توضیحات محصول جزئیات

Product name:	Fiber patch cord	Cable color:	yellow
length:	10m,20m,30m or customized	Cable Dimension:	0.9mm, 2.0mm,3.0mm
Connector:	SC/UPC	Model:	Single Model
wavelength::	1310nm or 1550nm	Cable type:	G652D, G657A1
برجسته کردن:	30m FTTH Optical Fiber Patch Cord,20m FTTH Optical Fiber Patch Cord,10m FTTH Optical Fiber Patch Cord , 20m FTTH Optical Fiber Patch Cord , 10m FTTH Optical Fiber Patch Cord

10m 20m 30m SM Duplex SC FTTH Optical Fiber Patch Cord

Feature:

Price-Competitive
Low Insertion Loss & PDL
Factory-terminated and Tested
Fiber Options: G.652D /G.657A1/OM1/OM2/OM3 and PM Panda Fiber
Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
Polishing Options: PC/UPC/APC
Feature Connector with Ceramic FerrulesApplications

Specifications

Simplex, single fiber, one connector on each end of the cable
Standard zip cord jacketing, OFNR
Corning fiber and cladding, Singlemode (9/125)
APC and/or UPC ends 100% inspected and tested for correct return loss and insertion loss levels
1m,2m,3m,5m.... in length

Technical Parameters

Connector type	FC,SC,LC,ST,MU,E2000,D4,DIN
Fiber mode	SM			MM
End face	PC	UPC	APC	PC
IL(dB)	≤0.3	≤0.2	≤0.3	≤0.3
RL(dB)	≥45	≥50	≥60	≥35
Other model	MT-RJ,MPO
IL(dB)	≤0.7	/	≤0.7	≤0.5
RL(dB)	≥30	/	≥50	≥25

Application

1. FTTH FTTB FTTX Network

2. CATV type FTTH, FTTB & FTTP systems.

3. Fiber optic patch cord was widely used in all kinds of optical network solutions , such as Security , WAN, LAN,Test Equipment.

Quality Guarantee

(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.

(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,

2；IPQC inspects the production line to ensure that the production meets the quality requirements.

3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements

(3) Optical Test. Our products comply with IEC and ITU standards

(4) At least 30% spot test by Quality Assurance Department after the products finished.

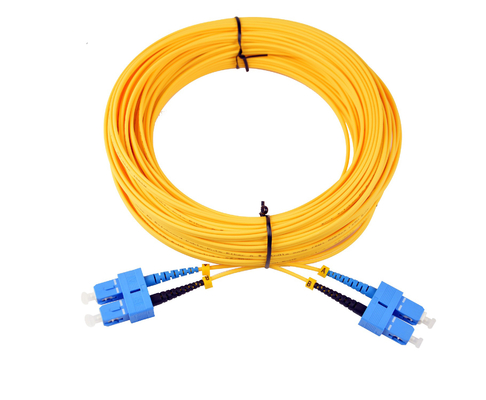

Product picture
