Single Mode MM G657A1 5m Duplex Fiber Optic Patch Cords

تصویر بزرگ : Single Mode MM G657A1 5m Duplex Fiber Optic Patch Cords

جزئیات محصول:

Place of Origin:	Shenzhen
نام تجاری:	CY COM
گواهی:	ISO ROHS

پرداخت:

Minimum Order Quantity:	10
Delivery Time:	5-10 work days
Payment Terms:	T/T, Western Union, MoneyGram, L/C

مخاطب

توضیحات محصول جزئیات

Product name:	Fiber patch cord	Cable color:	Orange
length:	1m,2m,3m,4m,5m or customized	Cable Dimension:	0.9mm, 2.0mm,3.0mm
Connector:	LC UPC to FC UPC	wavelength::	1310nm or 1550nm
Cable type:	G652D, G657A1,OM3	Fiber type:	Simplex and Duplex
برجسته کردن:	5m Duplex Fiber Optic Patch Cords,MM G657A1 Duplex Patch Cords,G657A1 5m Patch Cords , MM G657A1 Duplex Patch Cords , G657A1 5m Patch Cords

Single Mode MM G657A1 5m Duplex Fiber Optic Patch Cords

Feature:

Price-Competitive
Low Insertion Loss & PDL
Factory-terminated and Tested
Fiber Options: G.652D /G.657A1/OM1/OM2/OM3 and PM Panda Fiber
Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
Polishing Options: PC/UPC/APC
Feature Connector with Ceramic Ferrules

Application:

• Local Area Network (LAN)
• Data communication network
• Telecommunication optical •transmission network
• Optical access network(OAN)
• Active device termination
• Fiber optics data •transmission(FODT)
• Test Equipment
• CATV

Specification:

Model Name	Optical Fiber Patch Cord
Fiber Type	Single mode
Cable Assembilies	Duplex
Jacket Material	PVC (LSZH Negotiable)
Cable Diameter (mm)	3.0mm
Connector Type	LC SC FC ST
End Face	PC
Working Wavelength (nm)	850/1300
Insertion Loss (dB)	≤0.3dB(MAX) ≤0.2dB(Typical)
Return Loss (dB)	UPC ≥35dB
Exchangeability	≤0.2dB
Operating Temperature(℃)	-40～85
Storage Temperature(℃)	-40～85

Quality Guarantee

(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.

(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,

2；IPQC inspects the production line to ensure that the production meets the quality requirements.

3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements

(3) Optical Test. Our products comply with IEC and ITU standards

(4) At least 30% spot test by Quality Assurance Department after the products finished.

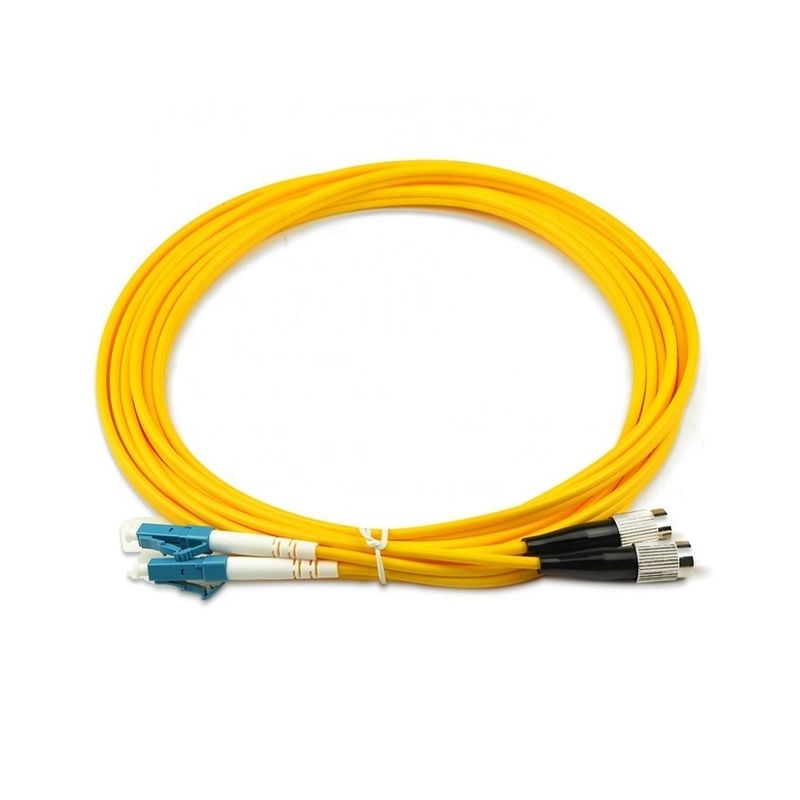

Product picture
