ABS Lightweight 144 Core MPO LC 24F Optical Cassettes

تصویر بزرگ : ABS Lightweight 144 Core MPO LC 24F Optical Cassettes

جزئیات محصول:

Place of Origin:	Shenzhen China
نام تجاری:	CY COM
گواهی:	ISO9001:2015 ;ROSH

پرداخت:

Minimum Order Quantity:	20pcs
Packaging Details:	Carton and Wooden
Delivery Time:	4-8 days
Payment Terms:	Western Union, T/T
Supply Ability:	2K/Month

مخاطب

توضیحات محصول جزئیات

Fiber qty:	144core	Patch penal:	9 x 4 LC x 4 part / 18 x 2 LC x 4 part
Height:	482.6X454. 5X 44 mm	Material:	Cold Rolled Steel / ABS Plastic
Color:	Black	Application:	Network, Telecommunications
Adapter Type:	LC Quad / LC Duplez	Aadpter color:	Beige / Blue / Green /Auqa / purple
برجسته کردن:	24F Optical Cassettes,MPO LC Optical Cassettes,144 Core MPO Cassettes , MPO LC Optical Cassettes , 144 Core MPO Cassettes

ABS Lightweight 144 Core MPO LC 24F Optical Cassettes

19'' 1U MPO/MTP-LC 24F Optical Cassettes 48,72,96,144 Core MPO Fiber Optic Patch Panel

Description

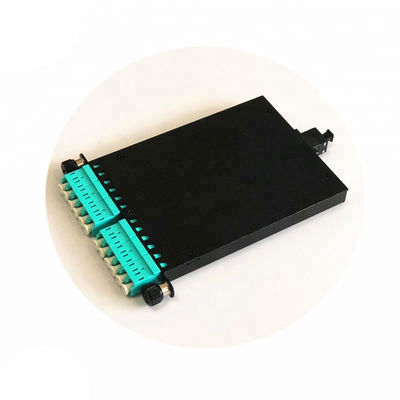

This Big capacity MPO Module is an MPO pre-terminated ultra-high-density wiring box, 19-inch, 1U height up to 144 cores, and can be used in high-density wiring applications such as computer centers, computer rooms, and databases. The front and rear removable top cover, pull-out double guide, detachable front bezel, ABS lightweight module box and other technical applications make this Module easy to use in high-density scenes whether it is in the cable or cable. 144 Module has a total of E-layer trays, each with independent aluminum guide rails, and the sliding distance is 110mm. Four MPO module boxes are installed on each tray, and each module box is installed with 6 DLCs and 12 cores. Each module box has a separate ABS rail for easy sliding installation without restrictions.

Features

1. Ultra-high density wiring application scenario
2. Standard 19-inch width
3. Ultra high density 1∪144 core
4. Double rail design for easy installation and maintenance
5. Lightweight ABS material MPO module box
6. Spray surface treatment process
7. Customizable color and silk screen LOGO

Application

Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures

Technical indicators

Execution standard: YD/T 778 optical distribution frame

Operating temperature: -5 ° C ~ +40 ° C; storage temperature: -25 ° C ~ +55 ° C

Salt spray experiment: 72 hours
Relative humidity: ≤95% (at +40 °C)

Atmospheric pressure: 76-106kpa
Withstand voltage level: ≤3000V (DC), 1 min without breakdown, no arcing insulation resistance: ≥1000M9/500V (DC)
Insertion loss: UPC≤0.2dB; APC≤0.3dB

Return loss: UPC≥50dB; APC≥60dB

Insertion durability: ≥1000 times
Adhesion: ISO rating: Level 1;

ASTM rating: 4B.

model	Product size (mm)	Maximum number of cores	Outer box size (mm)	colour	Standard accessories
CYMPO144	482.6X454. 5X44	144	630X535X115	andard accessories 5X	5X150 cable tie 1 5 / 12X100 magic hook and loop with 12 / 6X100 winding tube

Specification:

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM		≤0.30	≥60	≤0.10	≥60
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30

Product Show:

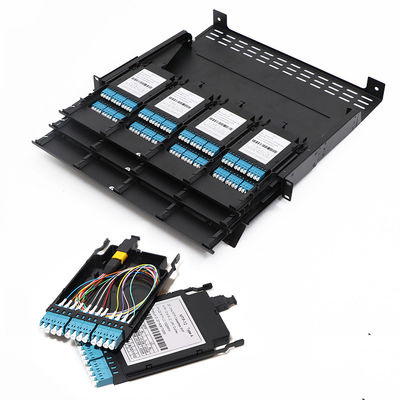

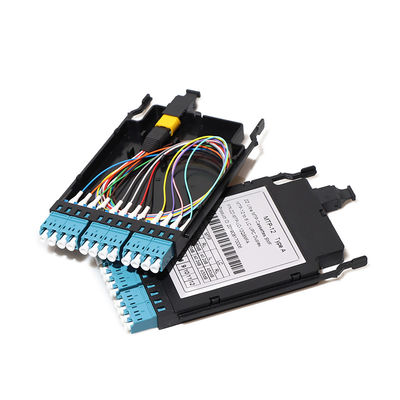

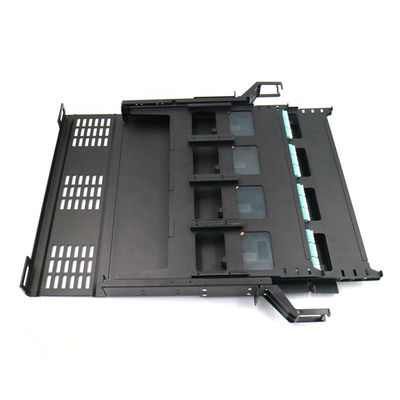

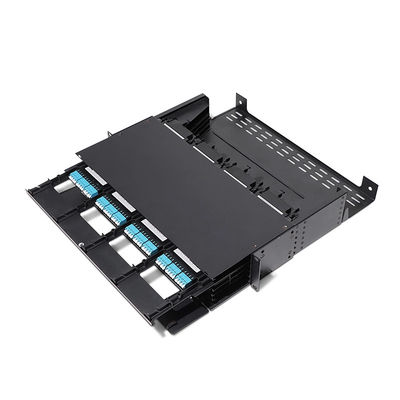

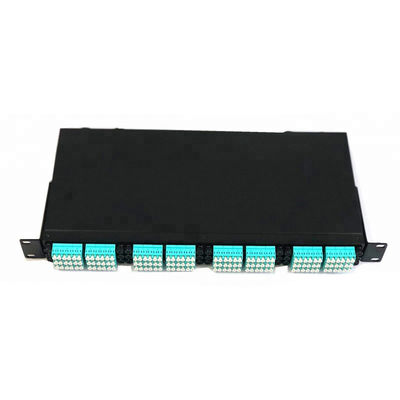

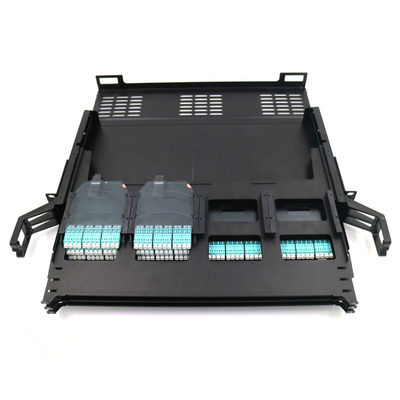

ABS Lightweight 144 Core MPO LC 24F Optical Cassettes 0

ABS Lightweight 144 Core MPO LC 24F Optical Cassettes 1

ABS Lightweight 144 Core MPO LC 24F Optical Cassettes 2
